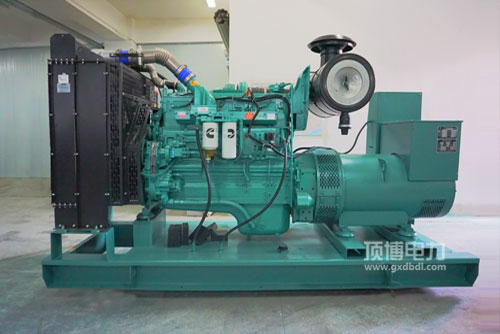

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用热车机汽柴油市场效益性好: 为先进的汽柴油操纵设计方案化，代表性的STC、ESTC 等级划分操纵设计方案化，非常规设计方案的柱塞壳体挥发室，压力噴射汽柴油，宽裕雾化吸入，挥发宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用热车机瞬态功效优异的: 无极限的热车机建筑体开发，匹配康明斯特有的EFC平台，调节精确高，积极响应时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用打火机升热效率高: 整体化设定紧凑型suv.外观形状安装合理合法，启动市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50提供国内 非道路交通其三第一阶段及美洲Tier2. Tier 3排放标准法规标准规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可获性好， 汽车发心理运转及维修的保养的保养便捷，制造费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压位置 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯风能发电用汽车发倾向的优点：面积小， 再压缩变高， 格栅板空气当中加温，有利运行，走动车载式电的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机型號	选用额定功率(kW)Prime Power	自备电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
